Classic 1G

From freemyipod.org
Jump to: navigation, search

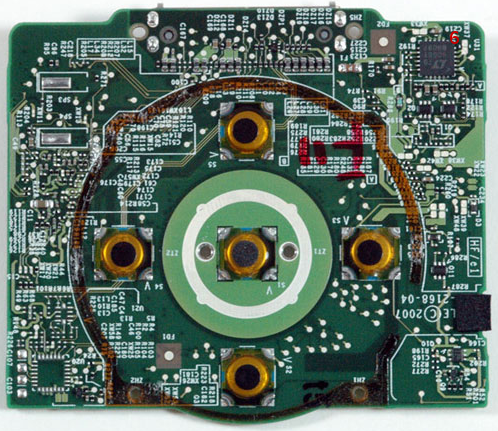

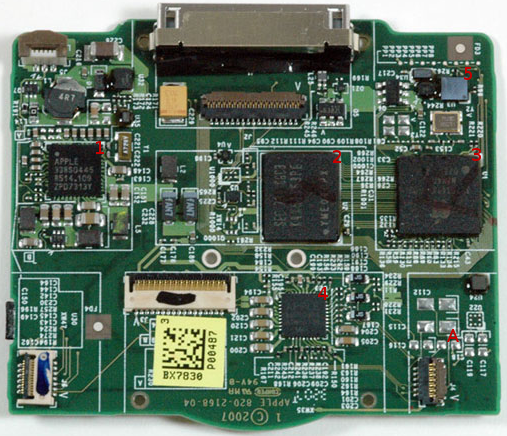

Classic 1g frt a.png Classic 1g bck a.png

Terminology

By iPod classic 1g we mean the first iPod released by Apple that had the 'classic' name. It was available in sizes of 80GB and 160GB.

Components

Label Component Part Markings Notes
3 CPU Samsung S5L8702 ARM926EJ-S processor. The package itself is Apple-branded and marked 337S3473 8702. Same as on the Nano 3G
2 SDRAM K4X51163PE
5 Utility Flash SST25VF080B Same as on the Nano 3G
4 Audio codec Cirrus Logic CS42L55 APPLE, 338S0394, A1GIO736, MAL
1 Power manager NXP PCF50635 APPLE, 338S0445, 2114.102, ZPD7383Y
6 USB charging LTC4066

Helpful pages

Teardowns:

Other:
